Engineering. Manufacturing. Assembly.

TAF range of services

Turnkey Plant Systems

Turnkey plant engineering encompasses the comprehensive planning, design, and development of complex technical systems—from the initial concept through to stable operation. It is applied in laboratory, pilot, and industrial plants where processes, components, and interfaces must be optimally coordinated.

We handle the entire implementation process: from component selection and material procurement through manufacturing, assembly, and integration of control and regulation technology to commissioning and the necessary TÜV approvals.

Thanks to our comprehensive technical expertise and project coordination, our customers receive all services from a single source. The result is customized, turnkey plant solutions that work reliably and meet the highest industrial standards.

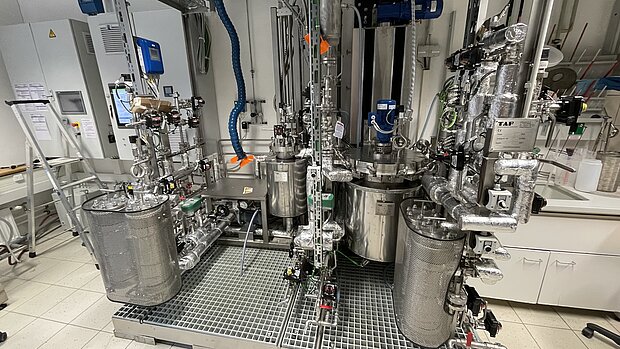

Pulp digester system

Laboratory scale

Application:

Pilot plant for the thermal digestion of plant-based raw materials and residues

Material: Stainless steel
Design pressure:-1 to 20 bar(g)
Temperature: up to 350 °C
Dimensions (L/W/H):2400 x 1400 x 3000 mm
Empty Weight:1500 kg
Design code:AD2000

Wax Melting System (Low Energy Polymer Dissolving Technology)

Pilot Scale

Application:

Testing of lubricating oil formulations with scaling up to industrial plant scale

Material:Stainless steel 1.4571
Design pressure:12 bar(g)
Temperature:up to 150 °C
Dimensions (L/W/H):5650 x 2130 x 2585 mm
Empty weight:4600 kg
Design code:AD2000

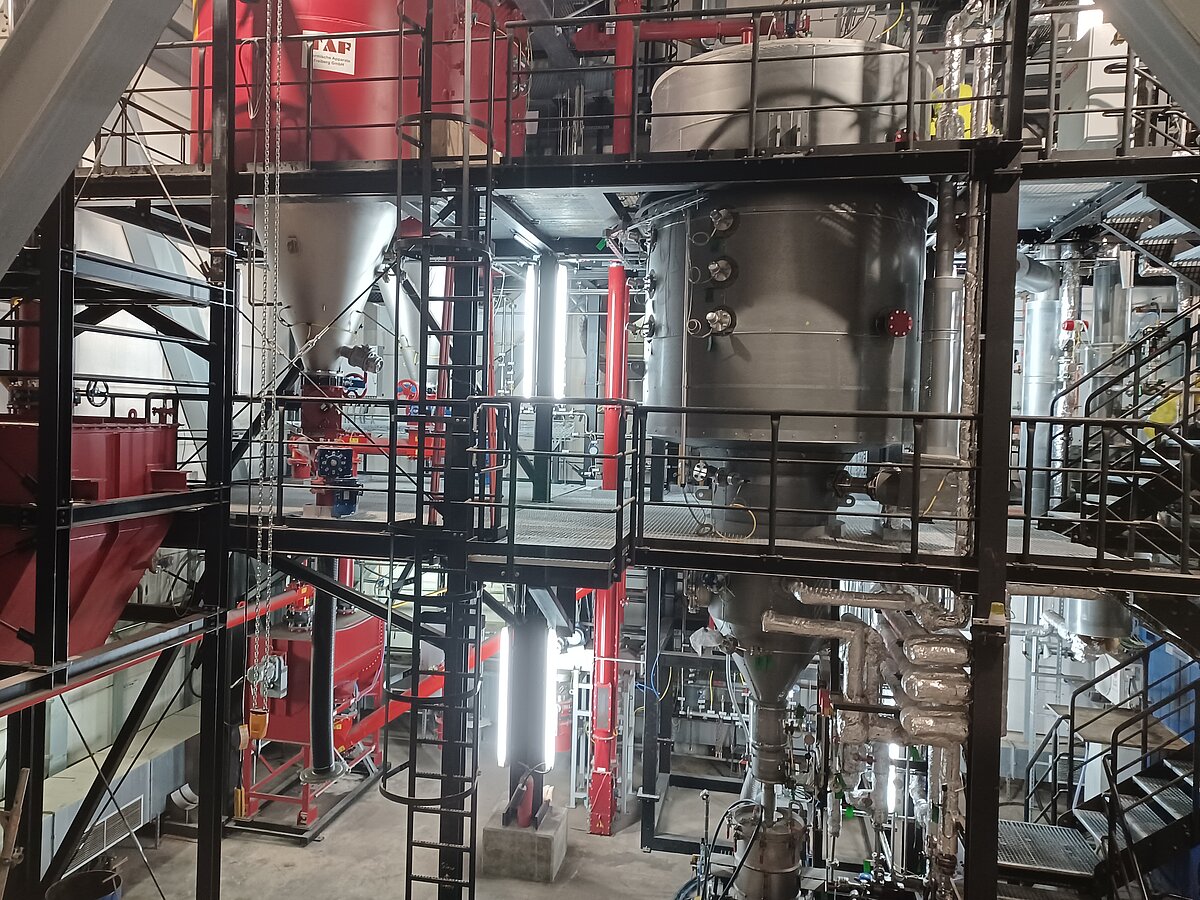

Multi-Fuel Conversion Plant (MFC)

Industrial scale

Application

Conversion of mixed fuels made from sewage sludge, sewage sludge ash, and lignite, with simultaneous recovery of phosphorus


Fuel thermal output:600 kW
Design pressure:atmospheric
Temperature: 1500 °C
Dimensions (L/W/H): 13,5 x 11 x 13,75 m
